New PUK welding microscope SM5 View larger

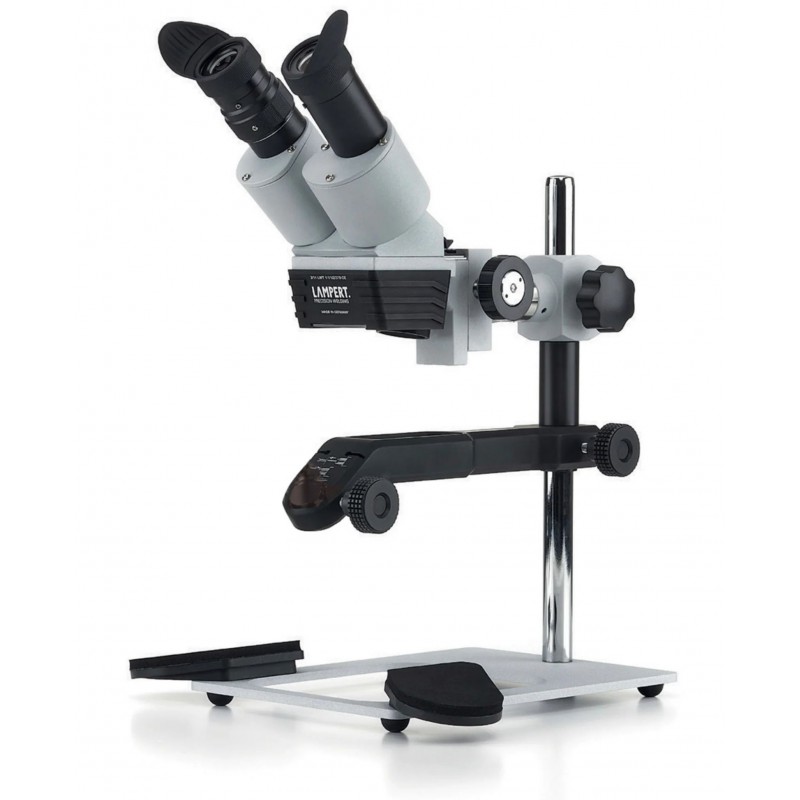

PUK welding microscope SM6

200226

New

PUK 6 eye protection – Only optimum vision with real safety for the operator’s health leads to good welding results.

In contrast to simple, mechanical protection systems, the PUK welding microscope is equipped with an LCD welding eye protection system specially developed and certified for Lampert. This PUK 6 eye protection system has decisive advantages for your safety.

More info: CHECK IT OUT

More details

Warning: Last items in stock!

1 290,00 €

More info

On the one hand, the field of vision is not completely darkened during welding, which results in less eye fatigue.

On the other hand, the Lampert system permanently protects against the dangerous radiation (UV and IR) generated during welding.

Even in case of a possible malfunction, there is safety for the welder’s eyes!

*Welding microscope SM 6, including electronically controlled eyeprotecting filter (DIN3/DIN11), 10x magnification, LED-lighting 3 W, handpiece holder, adjustable in pitch, complete with hand rests, cableclip and spacer, replacement plate shutter.

Ergonomics
Especially for regular or prolonged welding, good ergonomics of the welding microscope is very important.

The PUK welding microscope can be optimally adjusted to the operator and additionally ensures relaxed and low-fatigue work due to comfortable hand rests.

Each welding microscope is prepared for the attachment of an optionally available headrest, which makes even longer work comfortable.

Optical quality
The optics of PUK welding microscopes excel where it really makes sense.

After more than 20 years of development, we are still convinced that there are two essential requirements for the optics of a welding microscope. A fixed 10x magnification and a large 20 mm diameter field of view.

In other words, as few mechanical components or functions as possible that could be damaged by the vibrations generated during welding.

Here, too, quality and durability are our top priorities.

Magnification 10 x
Field of view diameter 20 mm
Working distance 140 mm
Diopter adjustment +
Lighting LED 4 W / 800 mA
Ergonomic hand rests +
Height and tilt adjustment +
Weight

3,5 kg

Actively controlled LCD eye protection system +
Brightness level of the LCD DIN 3
Darkness level of the LCD DIN 11
Switching time < 50 ms
UV protection > UV11
IR protection > IR11
